Electronics Engineer Helper

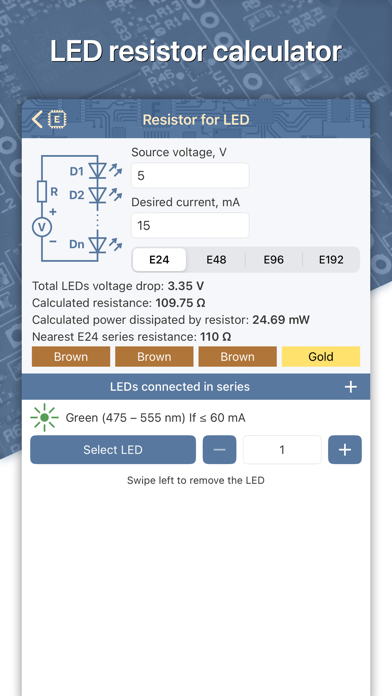

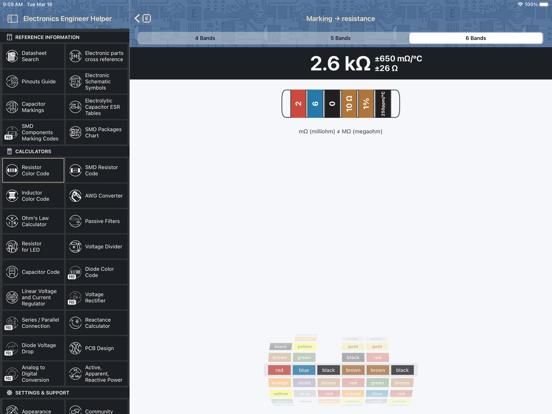

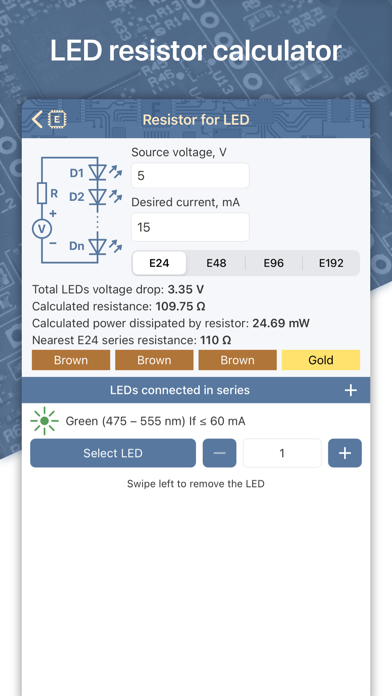

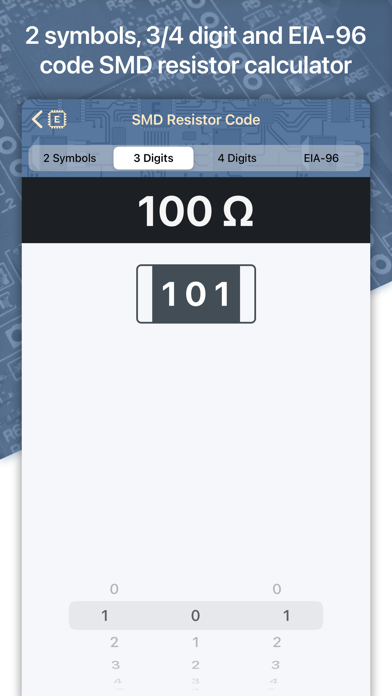

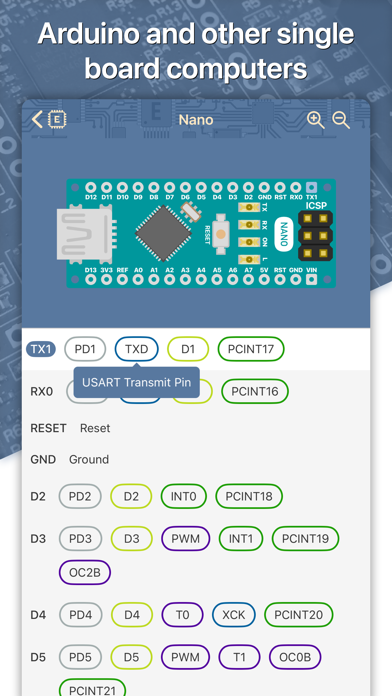

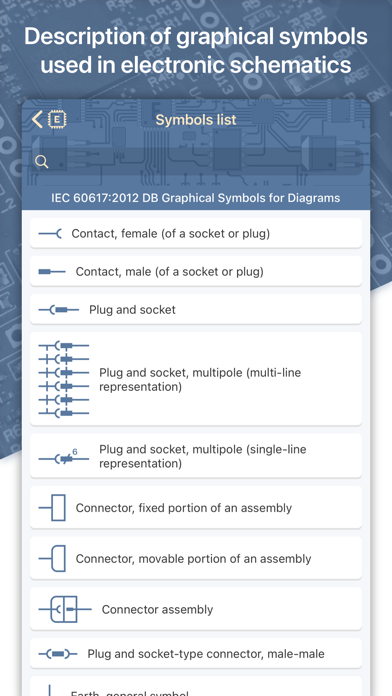

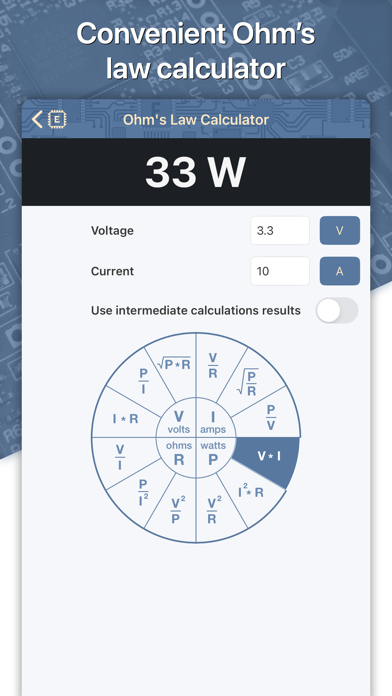

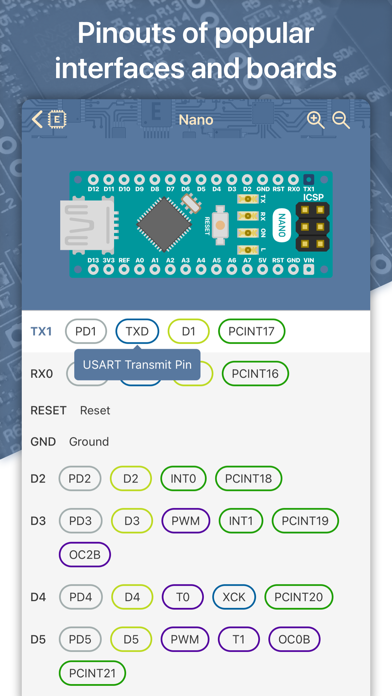

Digital toolbox for electronics engineers and electricians. Calculators and references for beginners and professionals — for work, study, DIY, and repair. Used by over 100,000 users. Completely ad-free. Included tools: • Datasheet search • Resistor color and digit marking (4, 5 and 6 band color code; 2 symbols, 3/4 digit and EIA-96 code SMD resistors code) • Electronic schematic symbols (IEC 60617, IEEE 315 and GOST standards) • Pinouts Guide (DVI, USB, Display Port, VGA, HDMI, Thunderbolt, Apple, RS-232/422/485, ATX, RCA, MIDI, XLR, Audio Jack, Arduino, Orange Pi, STM32, ESP32, and Raspberry Pi) • Ohm's law calculator • AWG converter (wire diameter, cross-section area, resistance and maximum current) • Resistor for LED • Voltage divider • Capacitor code • Capacitor markings • Capacitor ESR tables • Frequency response curve calculation of passive filters (RC, RL, RLC, LC) • Inductor color code • Linear current regulator • SMD packages list • Reactance • PCB trace resistance • Active, apparent and reactive power • 555 waveform generator • Operational amplifiers • RLC circuit • Number conversion • Unit converter • Cable voltage drop • NTC thermistor resistance • Logic gates • RC circuit • Decibels calculator • 25-pair cable color code • Fuse color marking Additionally, by purchasing the PRO version of the app, you will get access to additional tools: • SMD components marking codes • Diodes color code (Pro Electron, JEDEC and JIS-C-7012 standards) • Linear voltage regulator • Resistor value to color marking converter • Voltage rectifier • Series or parallel electrical components' connection calculator • Diode voltage drop • Minimum PCB trace width • Analog to digital conversion • Attenuators • 4-20 mA signal converter • Thermocouple calculator • Resistance thermometer • Buck switching voltage regulator • Wire resistance Privacy Policy: https://www.eehelper.app/ios/privacy/ Terms of Use: https://www.eehelper.app/ios/terms/
