Gas Pipe Calculator

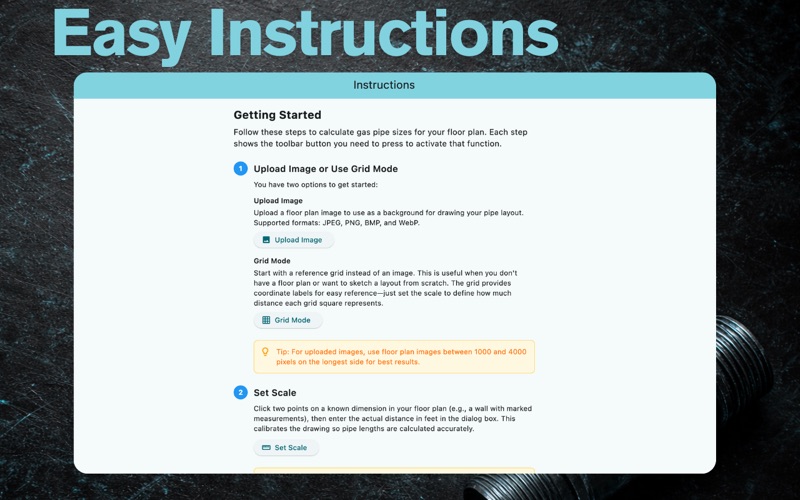

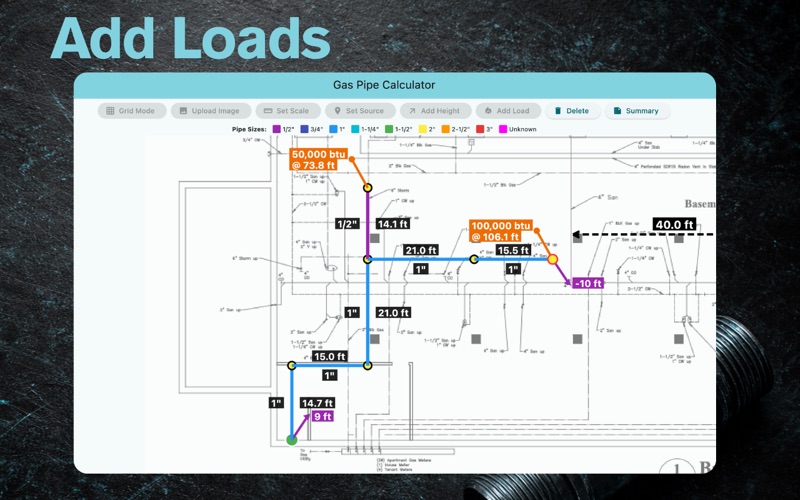

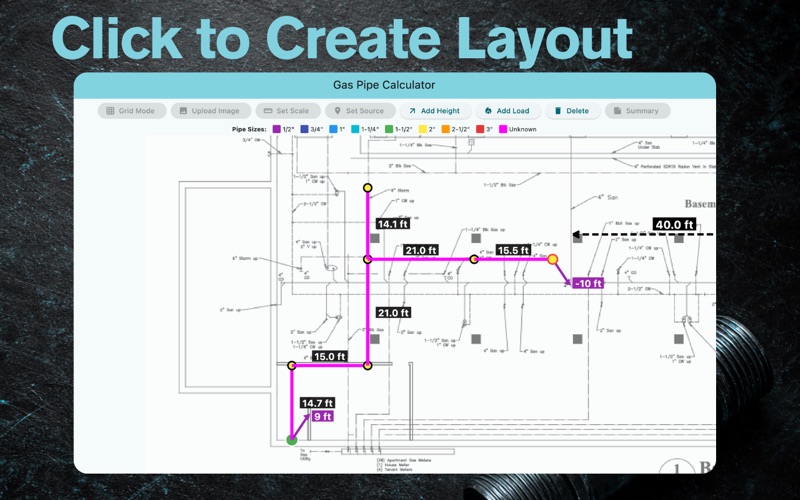

Gas Pipe Calculator is a sizing tool for natural gas piping systems. Built for contractors, plumbers, business owners, and homeowners who need to get an estimate of the size and materials for their NPT black pipe natural gas installation. DESIGN ON YOUR FLOOR PLANS Import floor plan images - a blueprint, a sketch, whatever you have (or use the Grid Mode without an image). Designate a known dimension on the drawing and the scale of the workspace is automatically calculated. INTUITIVE PIPE AND APPLIANCE LAYOUT Use the intuitive click-to-add interface for laying out the pipes including height changes. Add the appliance / equipment loads in BTU/h. AUTO-SIZING AND PARTS LIST The required pipe diameter is automatically calculated for each section, minimizing material cost. Get a one-click output of the estimated pipe, fittings, and hangers needed for the layout. DELIGHTFUL SOFTWARE Save to and Open from local files. Runs entirely on your computer - no internet, no ads, no upsell. If you need to size a gas pipe install, this program does the job and does it well.
