7 votes - Reference - First release: 2010-08-08T23:12:12Z

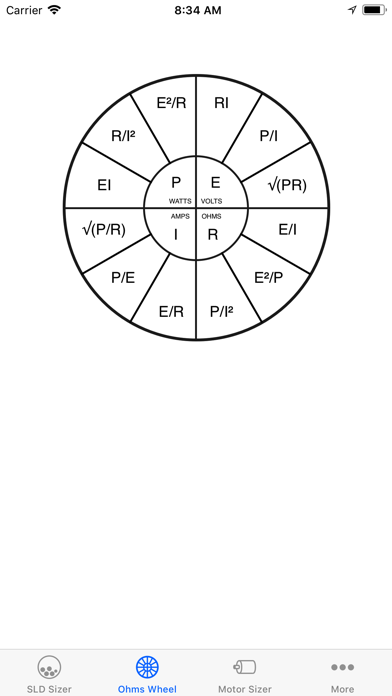

Screenshots
Description - 4+
Single Line Diagram Sizer is a reference tool for electrical engineers, designers, and contractors to verify wire and conduit sizes based on selected load. All data is based on the NEC and results provide minimum requirements. This app is used as a quick reference for designing or verifying design drawings or installations.
