Description
Diquence is a tool which can draw UML 2.0 style sequence diagram easily by commands.

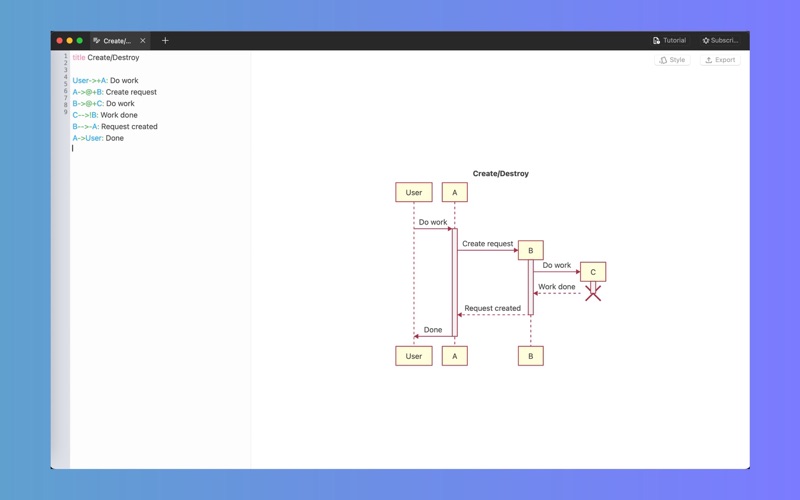

You type the command in the edit area on the left side, the corresponding diagram appears immediately in the diagram area on the right side.
Elements it supported:
- Participant
- Message
- Note
- State
- Nested Fragment(alt, opt, loop, par etc)
- Activate/Deactivate
Features it supported:
- Alias participant
- Group participants
- Four types of messages
- Incoming and Outgoing message
- Messages can be auto numbering
- Messages and notes can be displayed in parallel
- Custom style for text and elements
- Custom style for footer
- CJK characters and emoji are rendered correctly
- Four styles can be applied to diagram
- Export to png, jpg, svg
- Script auto-formatting
Sequence diagram exporting is a premium feature that requires unlocking to use.
New users can enjoy a 3-day free trial.
Subscribers can use it without limitations during the subscription period.
