Fittings App ANSI
Measure flange dimensions and bolt details
Steffen Weber
iPhone Screenshots
iPad Screenshots
Description
Measure flange dimensions including class rating, bolt size, and thickness. Calculate elbow cutting measurements based on radius and standard specifications. Input manual data for custom adjustments.
Nominal diameter NPS 1" - 40" / DN 25 - 1000
American Standard ASME B36.10
Functions:
- Measure of flange class 150-900:
ANSI/ASME B16.5/B16.47(A)
- welding neck lenght,
- gasket measure inside/outside,
- hex bolts, number, nominal size, lenght(RF, RJ, masch.),
- bolt circle,
- flange outside diameter,
- flange thickness,
- hex nuts thickness.
- measurements of the elbow with 2 types or manual input:
ANSI/ASME B16.9
- elbow radius ,
- calculate the cutting mesurements of the elbow,
- take off, chord,

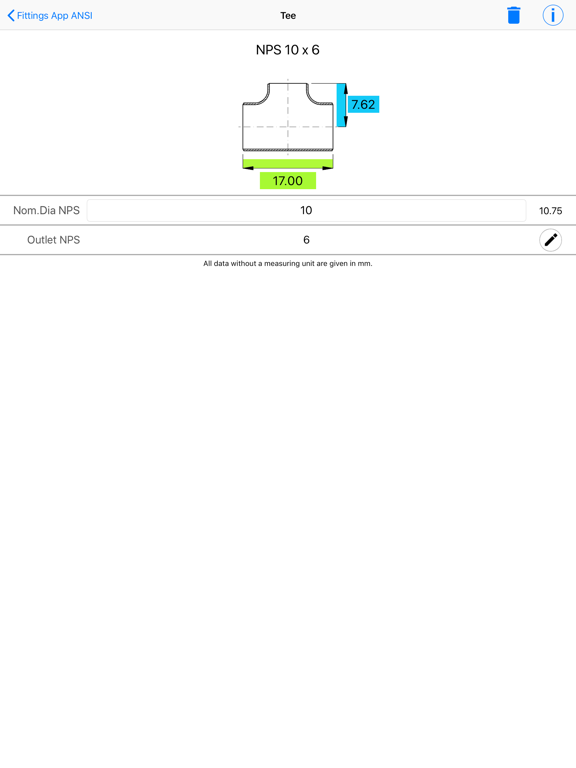

- tee with different outlet diameter,

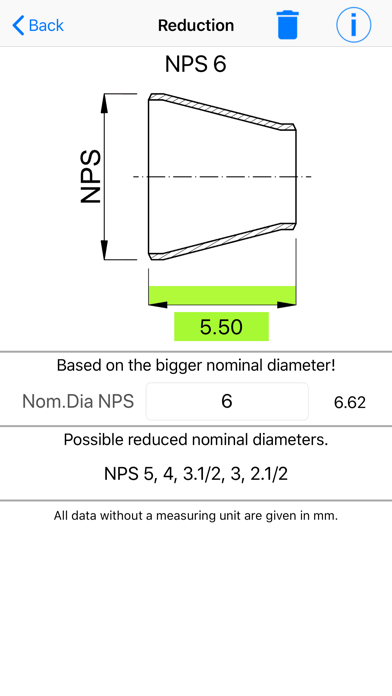

- reduction.
-Extensive help and explanations
