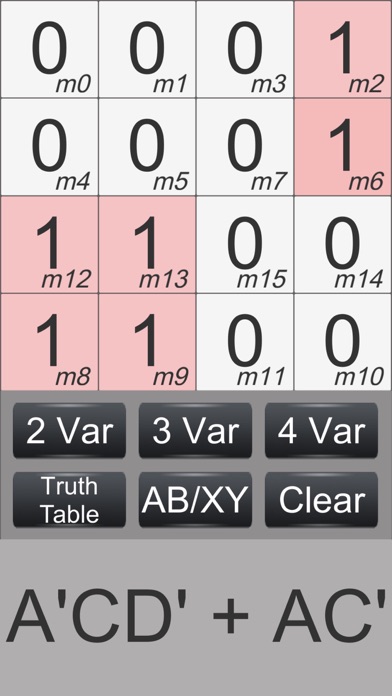

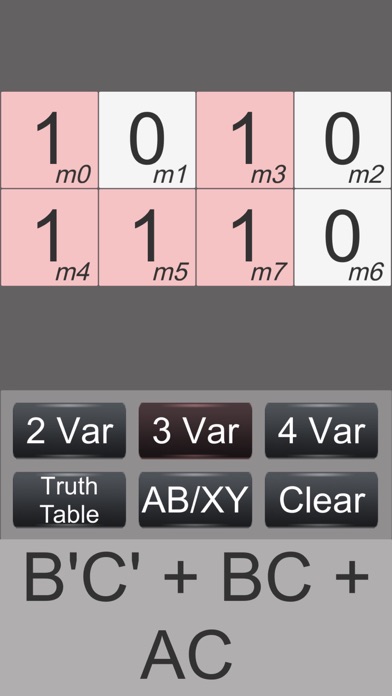

iPhone Screenshots
Description
Simplifies boolean expressions using Karnaugh maps for 2, 3, and 4 variables. Converts truth tables to K-maps and generates minimized output. Allows variable renaming from ABCD to WXYZ.
A simple and easy to use Karnaugh map calculator for: 2,3, and 4 variable K-maps.
- Converts truth-tables to K-map and produces minimized output.
- Switch from ABCD to WXYZ variable
A Karnaugh Map is a method to simplify boolean algebra expression. Commonly used in logic design. The desired output of a solution is put into a truth table and the Kmap using grouping will provide the minimum number of operations on the input and thus provide the minimum number of physical logic gates needed to produce the desired output
